2023 World Cat 255 DC

When we designed the 255DC, we enhanced it with 25% more cockpit space than our previous model. It’s the roomiest mid-sized dual console you’ll find – with seating for 10. But, that’s not all: Whether fishing, cruising, diving, or entertaining, the 255DC features the kind of stable, smooth performance, shallow draft, and bow to stern quality you expect from a World Cat.

Basic Boat Info

Make: World Cat
Model: 255 DC
Year: 2023
Category: Power
Construction: Fiberglass

Dimensions

Length: 24'6 ft
Length Overall: 26 ft
Beam: 8'6 ft
Min Draft: 1 ft
Bridge Clearance: 8'6 ft
Free Board: 2'1 ft
Dry Weight: 6,600 lb

Engines / Speed

Engines: 2
Engine #1 Specs:
  • Make: Yamaha
  • Model: F150XB
  • Engine Power: 150hp
  • Type: Outboard 4 Stroke
Engine #2 Specs:
  • Make: Yamaha
  • Model: F150XB
  • Engine Power: 150hp
  • Type: Outboard 4 Stroke
Cruising Speed: 21.72 kn
Maximum Speed: 40.84 kn

Tanks

Fuel Tanks: 2
Fuel Tank Capacity: 93 gal
Water Tanks: 1
Water Tank Capacity: 10 gal
Holding Tank Count: 1
Holding Tank Capacity: 10 gal

Other

Boat Class: Power Catamarans, Dual Console, Sports Fishing Boats
More Info :
Bow
  • Pro Series free-fall windlass with 300′ line, 15′ chain, 14lb anchor, and foot switches at the deck
  • 316-grade stainless steel bow rail
  • Bow pulpit with roller and cleat
  • Port and starboard bow anchor lockers
  • Forward sun lounge featuring port and starboard cushioned seats for 6 adults with wraparound coaming pad seat backs
  • Stainless steel cup holders
  • Large, lockable dry storage and rod storage box (starboard)
  • Large, lockable dry storage box (port)
  • Large, lockable dry storage box (center)
  • Large lockable dry storage compartment in front of helm console
  • Seating capacity of 10 people
  • Adjustable height bow table that converts to sun lounge with filler cushion
Helm
  • Fiberglass top with aluminum frame, overhead lights, rocket launchers, and spreader lights
  • Single Garmin GPSMAP 8612xsv 12" multi-touch widescreen Chartplotter / Sonar Combo, Airmar B150M transducer, dark-tinted acrylic dash, Garmin 315 VHF with 8' antenna
  • 3-piece safety glass walk-through windshield with companion way handrails
  • Helm and passenger dual custom seats with flip-up bolsters and recessed stainless steel cup holders
  • Ergonomic dash layout for a 12-inch screen
  • Fusion® MS-UD750 marine entertainment system with 4 JL Audio speakers, remote and Bluetooth
  • Power-assist steering with 15 1/2” stainless wheel
  • Starboard seatbox houses 30-gallon insulated livewell with a 1100-gph magnetic drive pump and overboard drain
  • Port seatbox houses 200-quart insulated fish box / cooler
  • Dual ram hydraulic steering

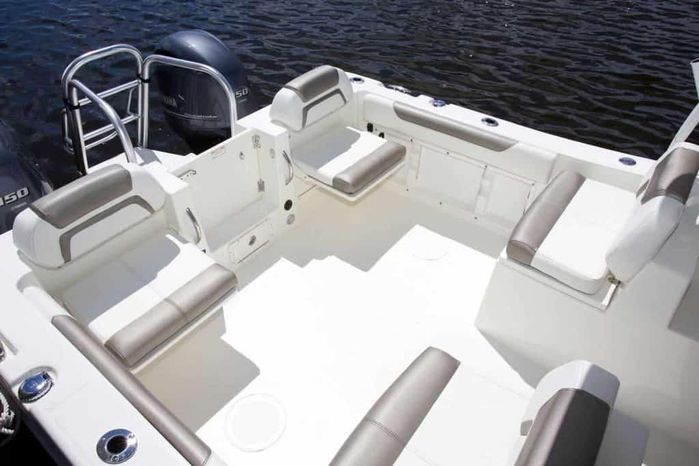

Stern
  • Walk-though transom with heavy-duty door
  • Battery management system with 2 Group 27 batteries
  • Integrated 2-bank battery charging system
  • Pull-out transom fresh water shower
  • Dual aft fold-down seats with backrest cushions
  • 6 pull-up stainless steel cleats
  • 4 gunwale-mounted stainless steel rod holders
  • Raw water washdown
  • User-friendly On-Ramp™ swim ladder and swim platform
